Manufacturing process introduction
How to make a counterweight
-
Can making counterweight
Can-making counterweights are heavier than casting counterweights,
This manufacturing method is suitable for mounting on large construction machines.
Manufacturing flow
-
Can assembly/

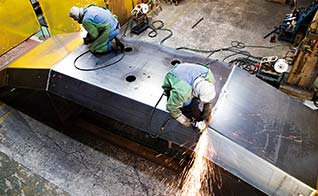

weldingBy processing and welding materials such as iron plates, we first create a three-dimensional structure. Here, for mass-produced products, jigs are used to prevent variations, welding is performed with a robot. Finally, welding is performed while adjusting manually.
-
Filling

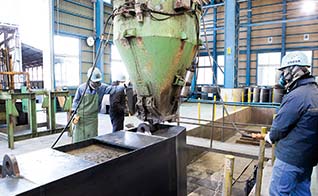

Cure the product and pour heavy concrete inside. At that time, it can be poured efficiently by placing it on a vibrating trolley.
-
Finish
As a pretreatment, scratches, foreign substances, oils, and fats are removed, the surface is prepared, and painting is completed.
-
Delivery
We will deliver it to the customer using our trailer.
-
-
Casting counterweight * We take over products manufactured in China and inspect and paint them in Japan.
Casting counterweights are more than canning counterweights
It is a manufacturing method that requires more fineness and precision.
Manufacturing flow
-
molding
A sand frame is made by combining a wooden mold and a metal frame to pour iron.
-
Melting
and

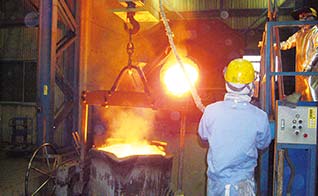

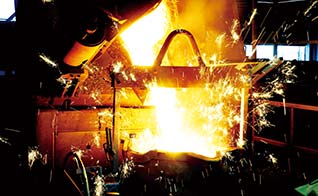

pouringHeat iron to 1,500°C in an electric furnace, adjust the composition and slowly pour it into the mold.
-
Finish
Use a shot blast or grinder to remove burrs, clean the surface, and then clean it with putty. After that, rust preventive coating is applied to complete the process.
-
Delivery
We will deliver it to the customer using our trailer.
-
Equipment introduction
Noda Center
Inspection and Research Equipment
-
Can making weight equipment
Concrete filling plant Filling plant (load cell weighing method) Kneading capacity 1.5m3
4,000kg/batch, weighing capacity 15,000kg/10kg1 Set Large filling plant 1 Set Welding robot model TA-1600GⅡ (vertical articulated) 1 unit Overhead crane 30t/ 5t 1 unit Overhead crane 30t/10t model 30HD/10HD-T555 1 unit Overhead crane 15t 3 units Overhead crane 10t 1 unit Overhead crane 7.5t 1 unit Overhead crane 1t 1 unit Forklift 5t 1 unit Forklift 2.5t 1 unit Excavator loader SD25-6 Model SD-25-6 1 unit ZX225USR-3 (Clamshell bucket) Model ZX225USR-3 1 unit Yanmar backhoe 1 unit -
Casting weight equipment
Painting line hanger type 10ton x 12set
Preheating furnace, undercoat booth, topcoat booth, drying furnace1 Set Overhead crane 20t 1 unit Overhead crane 10t 3 units Overhead crane 7.5t 1 unit Overhead crane 5t 3 units Overhead crane 2.8t 2 groups Overhead crane 2t 2 groups Forklift 15t 1 unit Forklift 5t 2 groups Forklift 4t 1 unit Forklift 2t 1 unit Excavator loader LD9 1 unit -
Inspection/research equipment
3D-CAD (I-deas Ver.12) Inventor/Solidworks/Rhinoceros 1 Set FARO Portable Digital CMM 12ft Titanium Arm (6 Axis) 1 unit HandySCAN 700 SYS-H3D-H700 1 unit Universal tester AG-300KNXplus 1 unit Brinell hardness tester B03 1 unit One Olympus inverted metallurgical microscope GX51 1 unit Emission spectrophotometer PDA-7020 1 unit Polishing machine (for microscope) IM-P2 1 unit Manual precision cutting machine (wet) SKY3-03 1 unit Verda (for light emission) FS-3NS 1 unit Sample container GI-10 1 unit Hot dryer HDO633 1 unit
Iwai Center
Transportation Department
-
Can making weight equipment
NC plasma cutting machine ECONOGRAPH-2500DD 2 groups NC plasma cutting machine INTEGRAPH-II 1 unit Plasma cutting robot 2 groups Bending roll 1 unit Hydraulic press brake 300t Model PHS 300×400 1 unit Hydraulic press brake 225t 1 unit C type hydraulic press 120t 1 unit Welding robot model TA-1800GⅡ (vertical articulated) 7 units Pressed steel plate degreasing tank 1 unit Solvent wastewater treatment equipment 1 Set Ar-CO2 mixed gas production equipment 1 unit Liquid oxygen tank 20t 1 unit Slat conveyor 1 unit Concrete filling plant 1 Set Overhead crane 10t 6 units Overhead crane 5t 3 units Overhead crane 2.8t 3 units Overhead crane 2t 10 units Overhead crane 1t 9 units Forklift 4t 1 unit Forklift 3t 4 units Forklift 1.5t 1 unit Wheel excavator Komatsu WA30-5E 1 unit -
Transportation department
Trailer 32t One Trailer 27t 3 units Trailer 20t One Truck 13.5t One Wing car 13.7t One
Iwai No.2 Center
-
Can making weight equipment
Overhead crane 10t 1 unit Overhead crane 5t 2 groups -
Casting weight equipment
Overhead crane 5t 2 groups Forklift 4t 1 unit Forklift 3t 1 unit
